DESCRIPTION:
Effective aerial surveying needs to see the invisible. That's why Mavic 3 Multispectral has two forms of sight. It combines an RGB camera with a multispectral camera to scan and analyze crop growth with total clarity. Agricultural production management requires precision and data, and Mavic 3M delivers both.
| Compact and portable | Multispectral Camera | RGB camera |
| Foldable for easy storage | 4 × 5MP G/R/RE/NIR |
20 MP 4/3 CMOS, mechanical shutter |
| Safe and stable | Precise positioning | Efficient aerial surveying |
| Omnidirectional Obstacle Avoidance 15km Transmission Distance |
Centimeter-level RTK positioning Microsecond-level time synchronization |
Up to 200 hectares per flight |
Multispectral + RGB imaging system
Highly integrated imaging system
Newly upgraded imaging system with one 20MP RGB camera and four 5MP multispectral cameras (green, red, red edge, and near infrared). Enables applications such as high-precision aerial surveying, crop growth monitoring, and natural resource surveys.
Efficient and reliable battery life
|
Ultra-long battery life, fast bursts |
|
| 43 minutes | |
| Cruise time | |
| 200 hectare | |
| A single flight can complete mapping operations over an area of 200 hectares. |
Applications
Orchard mapping

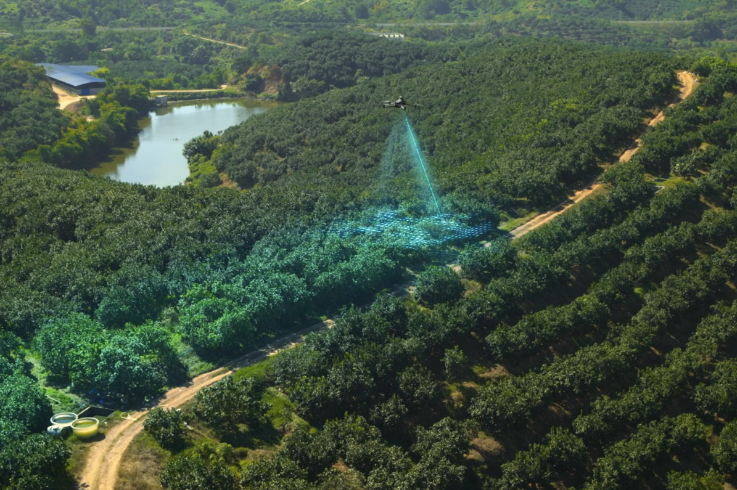

Mavic 3M enables terrain-following aerial surveys of orchards, even on sloped landscapes. When used with DJI Terra or DJI SmartFarm Web, it can create high-resolution orchard maps, automatically count trees, distinguish trees from other objects or obstacles, and generate 3D operational routes for agricultural drones, enhancing both safety and efficiency.
Mavic 3M aerial surveying |
 |

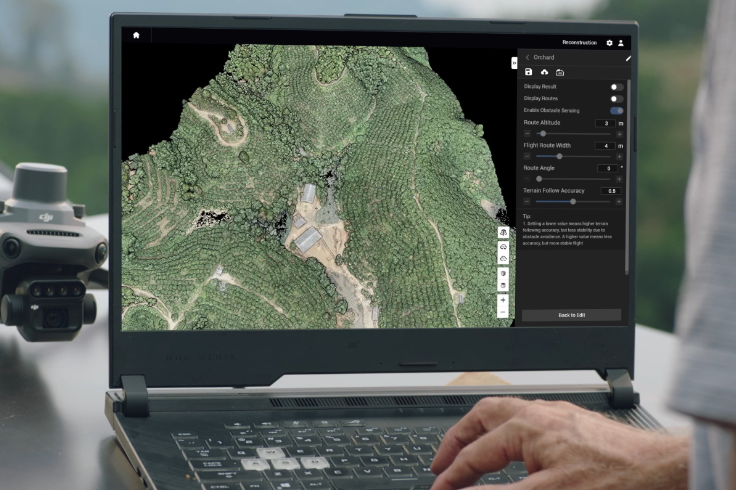

DJI Terra / DJI SmartFarm Web Mapping |
 |

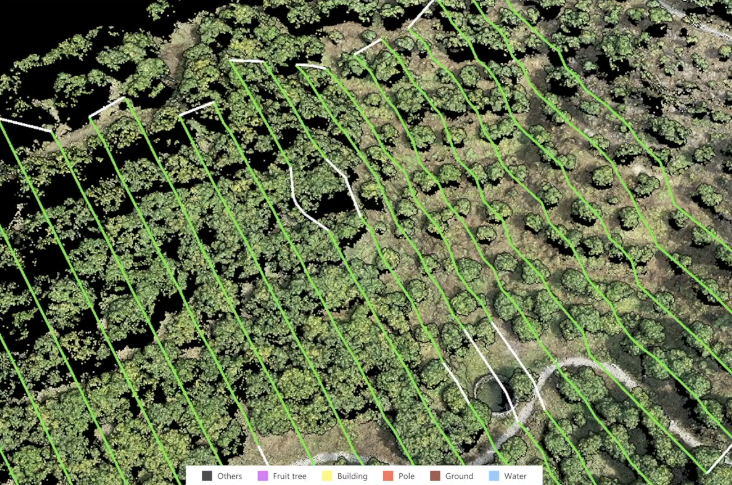

Generate 3D Routes |
 |
Agricultural Drone Operation |
 |
